Poly Normal selection Mode :
This mode
allow to select polygons using their orientation
NB : 2D polygon are
also processed.
![]() |

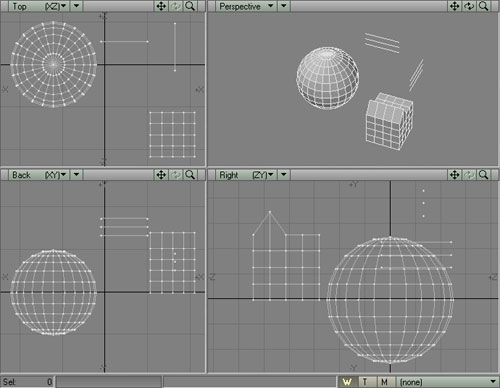

Starting Shape |
![]() |

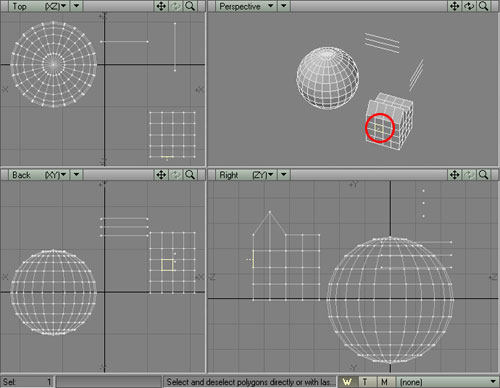

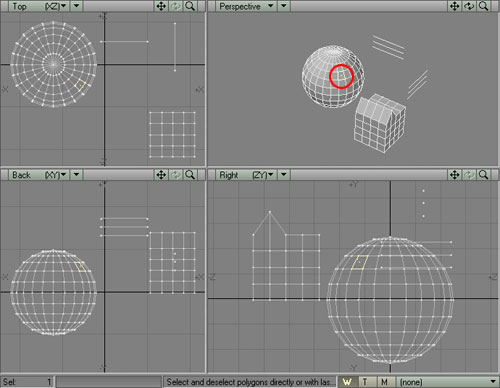

Select the direction reference polygon |
![]() |

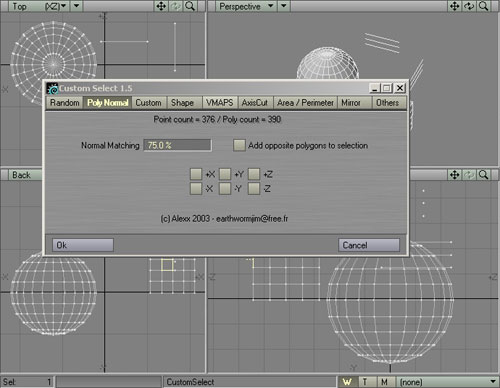

Set the normal matching value : 100 % means exact orientation less than 100% allow to select polygons with an orientation near the reference one. Decreasing normal matching will select more and more polygons |
![]() |

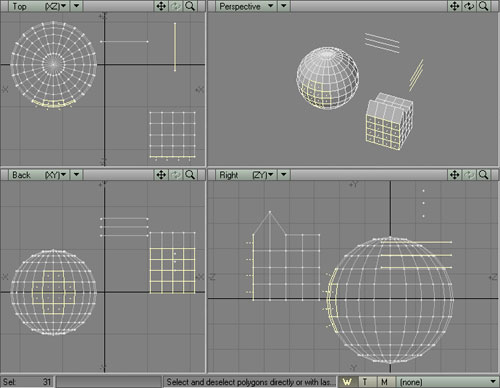

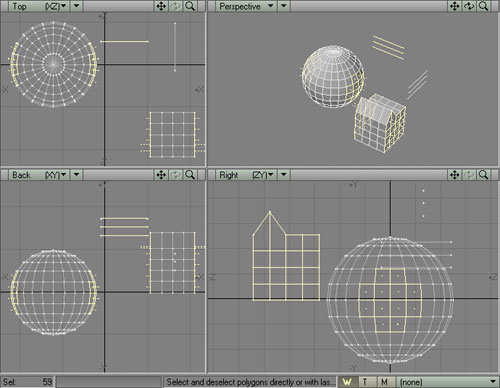

Result : polygons with a direction matching the reference from 75% to 100% are selected |
![]() |

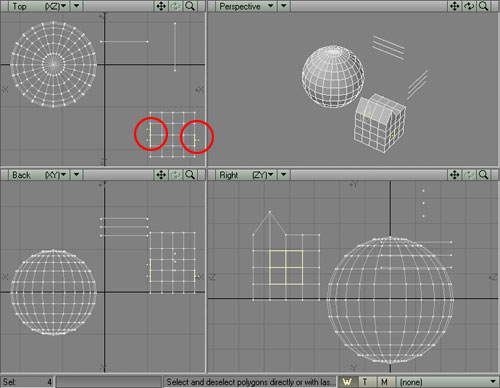

You can add many different starting directions |
![]() |

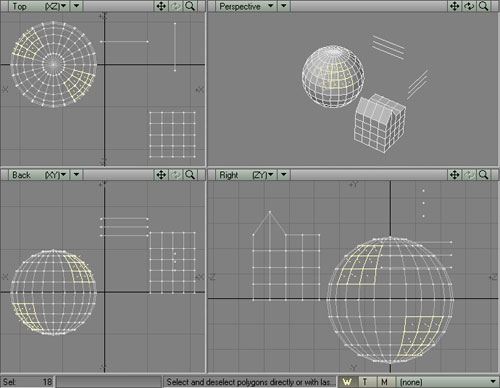

Result |
![]() |

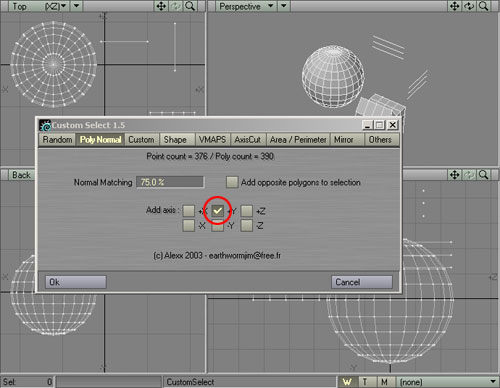

you can also use predefined direction axis |
![]() |

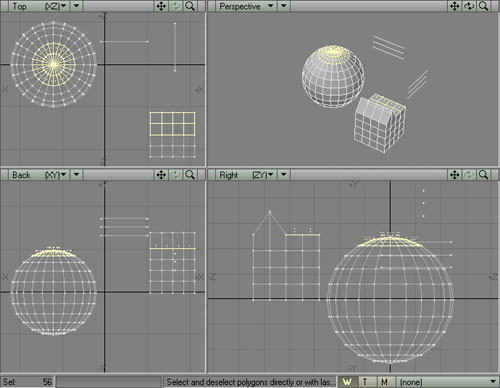

In this case, only polygons facing Y+ from 75% to 100% are selected |
![]() |
You can do a selection and automatically select polygons with the opposite direction |
![]() |

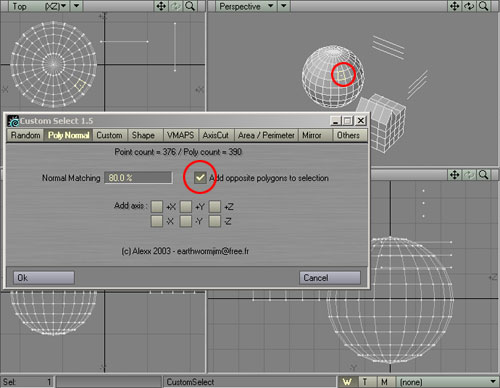

Activate the "Add opposite" option |
![]() |
Result... |
