Vmap selection Mode :
This mode allow
to select points that have specific value on a weight map
NB : only
the Subpatch Vmap and Weightmaps can be processed (for now...)
![]() |

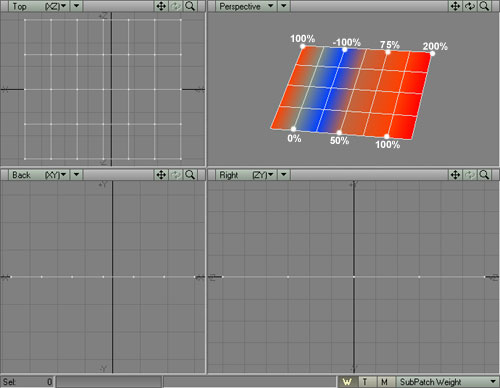

Starting Shape |
![]() |

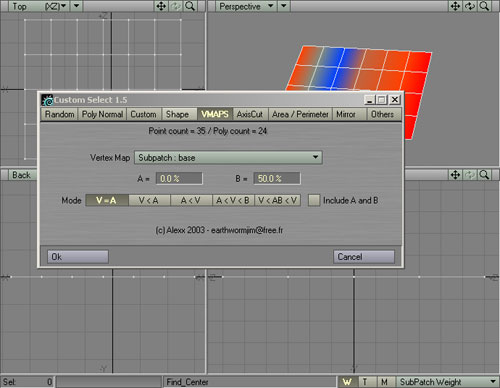

The (V = A) processor allow to select points with an exact value
typed in the (A) input field. Here only point with a 0 value will be selected |
![]() |
The result message display the min and max vmap values detected in the selection |
![]() |
The (V < A) processor will select point with a value strictly lower than (A). |
![]() |
Result : only points < 0 are selected |
![]() |

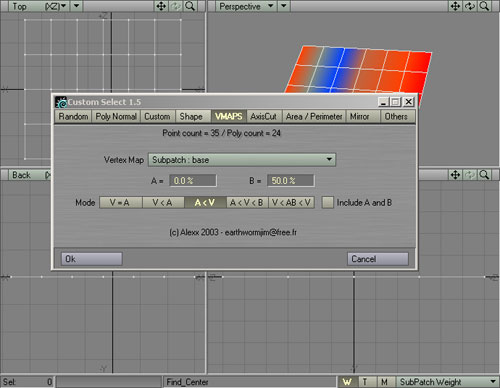

The (A < V) processor will select points strictly bigger than (A) |
![]() |

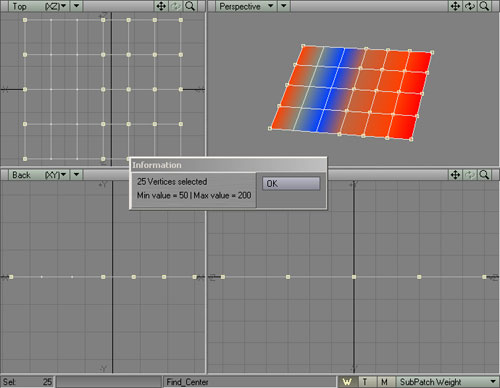

Only points strictly bigger than 0 are selected |
![]() |
The (A < V < B) processor wil select points that are strictly between A and B. |
![]() |
Only points between 50% and 100% are selected |
![]() |
At any time you can check the "Include A and B" button to have their value included into the test. |
![]() |
Now points that are between or equal to A and B (50% and 100%) are selected. |
![]() |

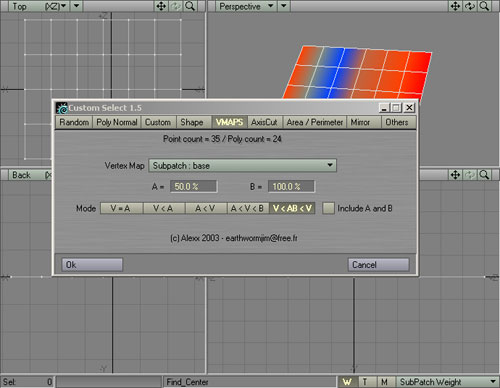

the (V <AB < V) processor will select point strictly lower than A or strictly bigger than B |
![]() |

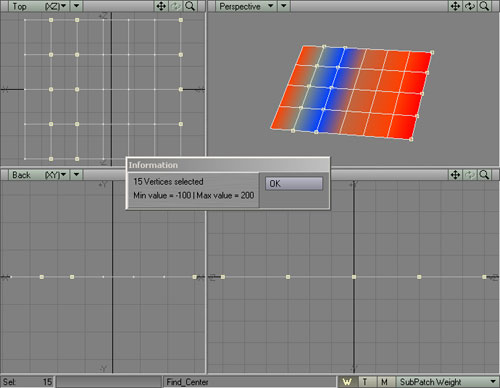

Result |
