Shape selection Mode :
This mode allow
to select groups of polygons taht have the same shapes, even is they are moved
/ rotated / proportionally scaled
NB : This
selection mode use A LOT of undo buffer
![]() |

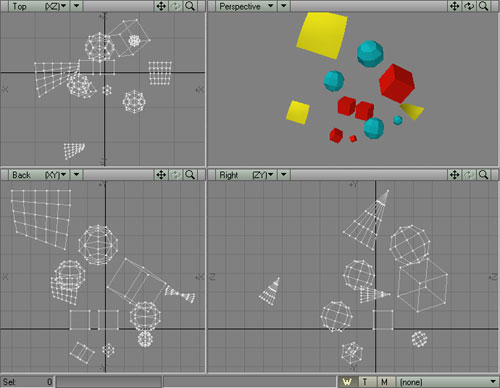

Starting Shapes |
![]() |

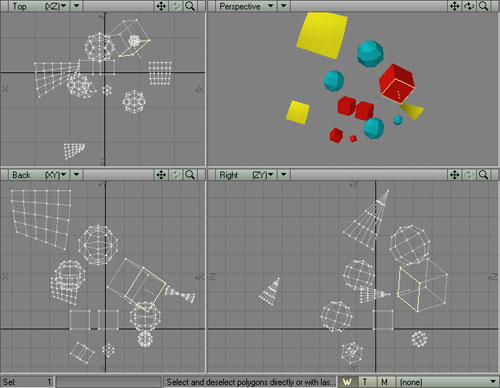

Select some polygons on your reference shape NB : A shape is defined by all polygons connected to this selection |
![]() |

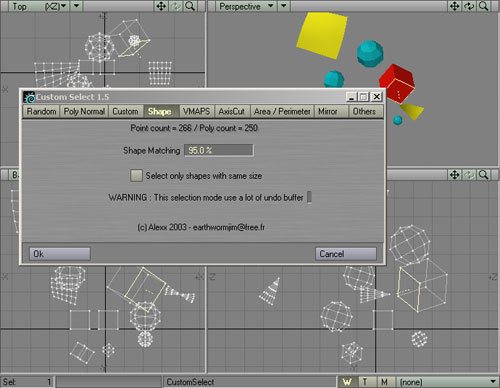

Set the Shape matching to about 95%, this is the detection threshold |
![]() |

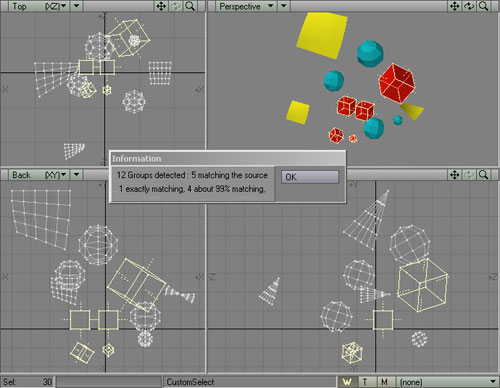

Shapes matching the source are selected. |
![]() |

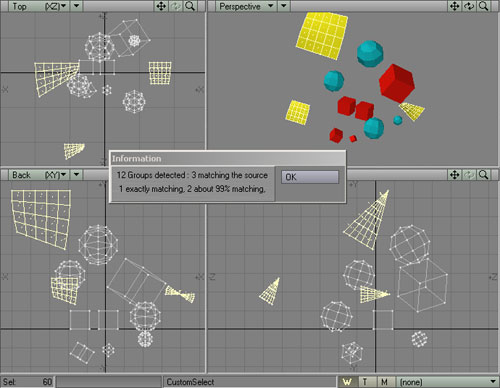

Same test with twisted planes |
![]() |

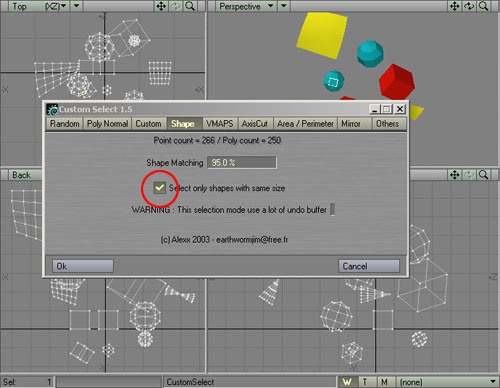

you can force the detection to select only shapes with the same size |
![]() |

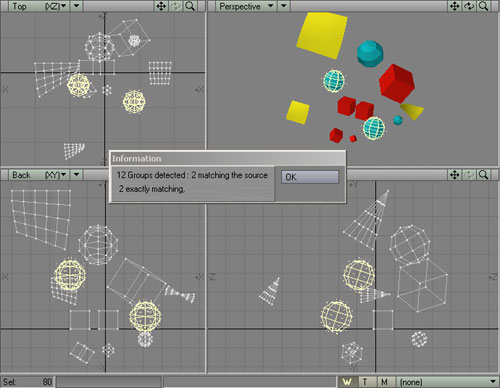

Test with spheres : only the to smae sized spheres are seleted |
